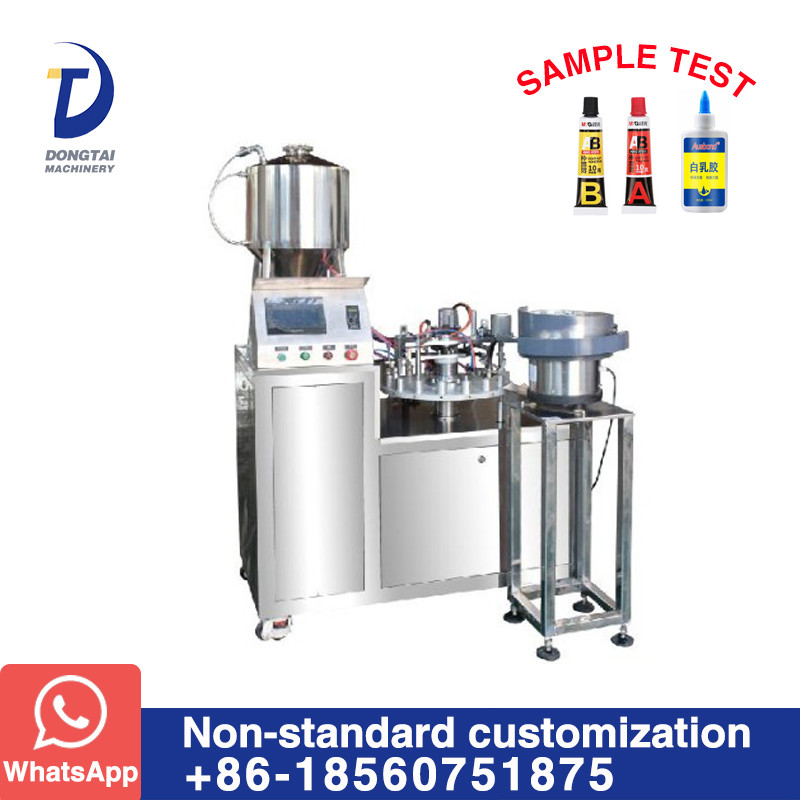

DTG-SG Automatic Super Glue Filling Capping Machine
DTG-SG Automatic Super Glue Filling Capping Machine
Model
DTG-SG

Item specifics

Power
220V/50Hz(60Hz)
Rate
2.25KW
Filling Range
2g-250g
Filling Speed
20pcs-50pcs/min
Filling Precision
±1%

Review

Description


Product introduce:

The machine is a newly designed for adhesive factory which is mainly used for of super glues filling in plastic bottle and cap closing The main products are 502 glue,  AB glue, white glue and instant glue ect.

working flow
Auto bottle feeding  → Filling →  Stopper closing → Cap feeding  → Cap closing → Auto ejection

Features
1. Filling by gravity or piston pump according to the glue viscosity.
2.The bottle and caps are feeded by vibration disk which is speedy and precise.
3.Mechanical cam system makes the operation reliable
4.One machine could be used for different bottles

Technical parameter:
Power
220V/50Hz(60Hz)
Rate
2.25KW
Bottle size
(D):Φ10mmΦ100mm
(L):20~280mm
Filling Range
2g-250g
Filling Speed
20pcs-50pcs/min
Filling Precision
±1%
